Entrance Door S-70000

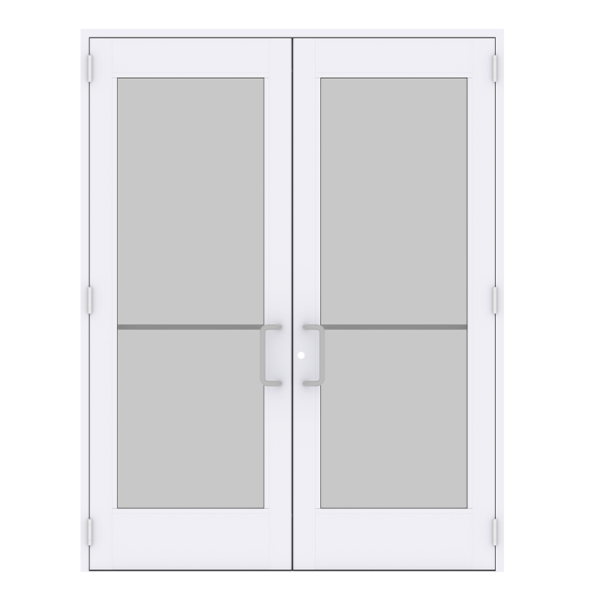

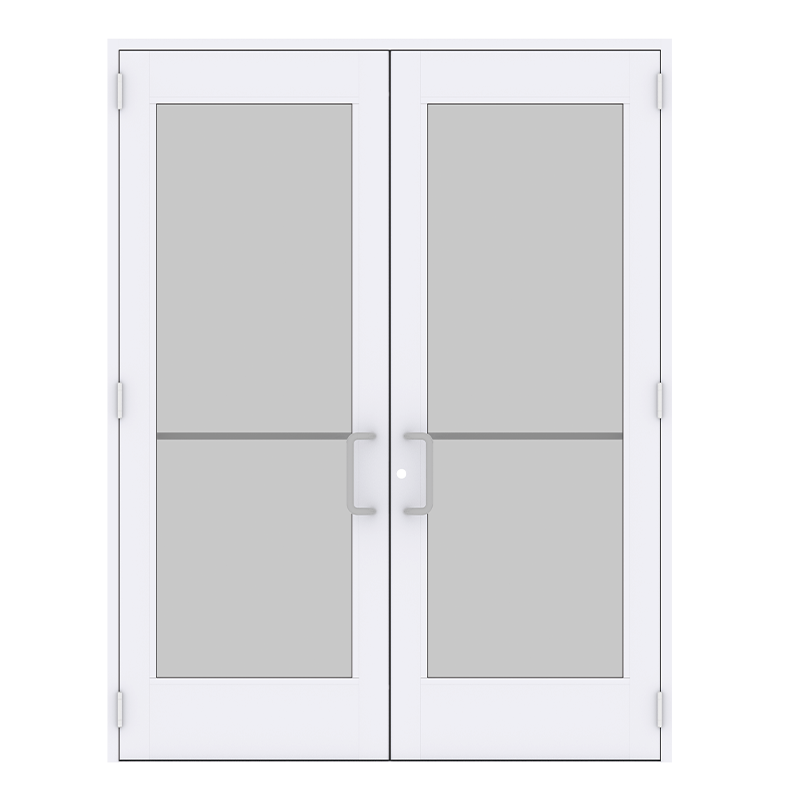

Outswing Entrance Door S-70000
Configuration as viewed from outside looking in
All doors dimensions are tip to tip frame
All doors dimensions are to be taken from the outside (exterior)

Available Finishes:
White, Bronze, and Clear Anodized

Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer

Glass Types:
7/16” Laminated
9/16” Laminated
15/16” Insulated Laminated

Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70

Standard Hardware:
Flush Bolt
Stainless steel hinges 4 1/2” X 4”
Push and Pull 1” X 10” Handle

Standard Features:
Extruded snap-on square glazing beads
4 ½ deep frame
Fastener Cover
Triple weatherstripping
Outswing configuration
Stainless steel screw

Optional Items:
3- point locking system
Handle Summit, Aria, Acacia, White, Bronze, Silver, Satin Nickel, Antique Brass
Colonial Muntin
6” Bottom Rail
Uneven Panel for Double Door

Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80

Panic Device Type:
Series AD8400- ASSA ABLOY
Series G86- ASSA ABLOY
Series 9947- VON DUPRIN
