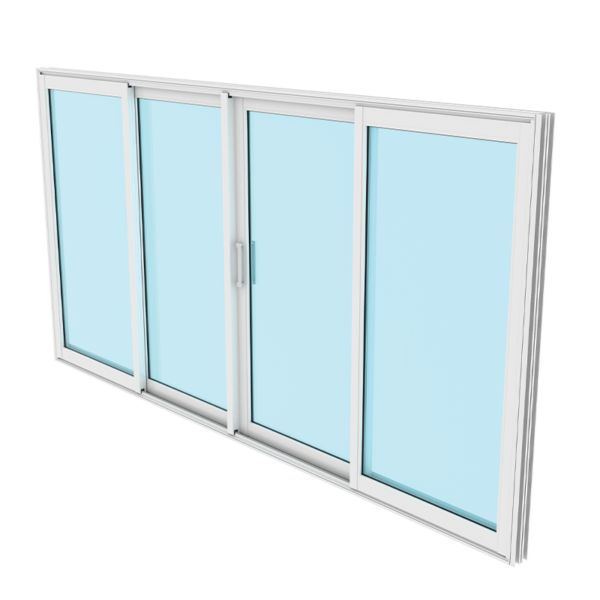

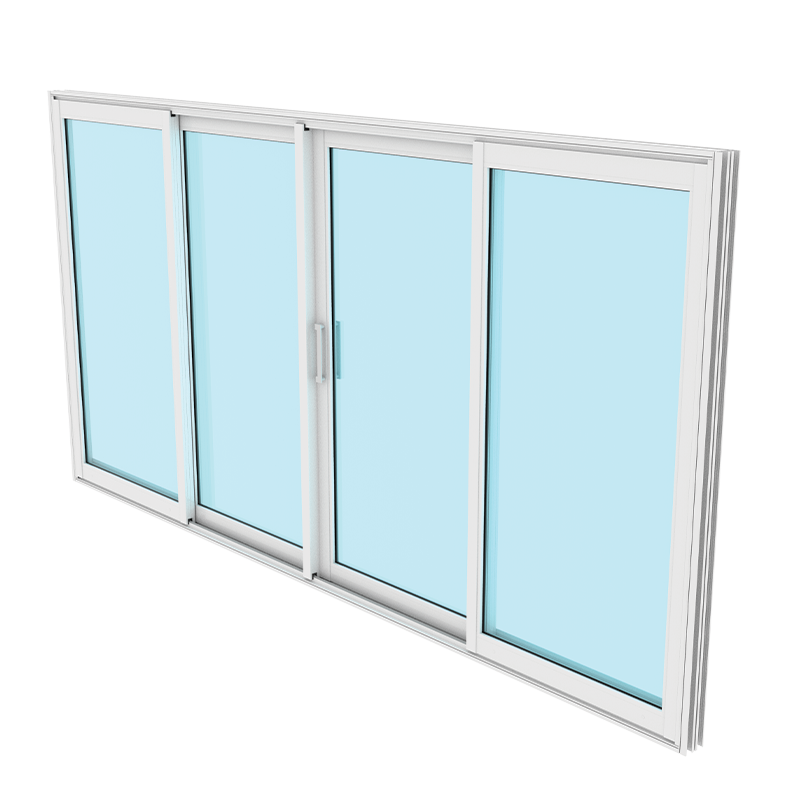

Sliding Glass Door S-26000
Configuration as viewed from outside looking in
All doors dimensions are tip to tip frame
All doors dimensions are to be taken from the outside (exterior)
Available Finishes:
White, Bronze, and Clear Anodized
Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer
Glass Types:
7/16” Laminated
9/16” Laminated
1” Insulated Laminated
Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70
Standard Hardware:
Interior lock and handle
Stainless steel housing with Nylon Rollers
White, Bronze or Gray Handles
Standard Features:
Sill Height: 3.5, 4, 5 3/8″
2, 3, 4, & 5 track and pocketed configurations

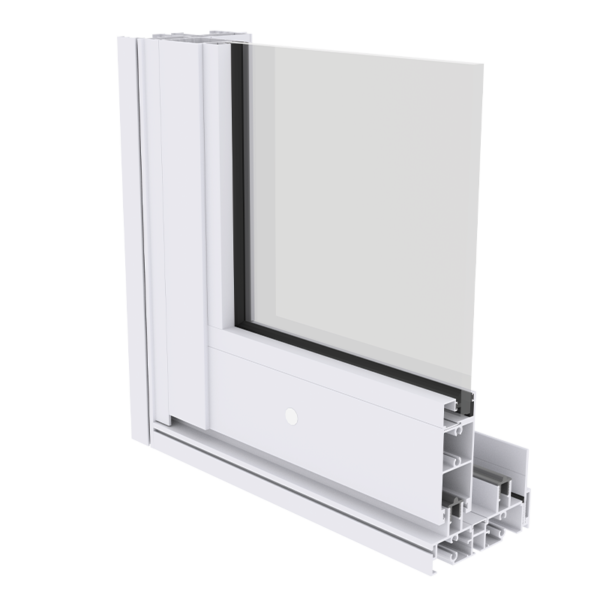

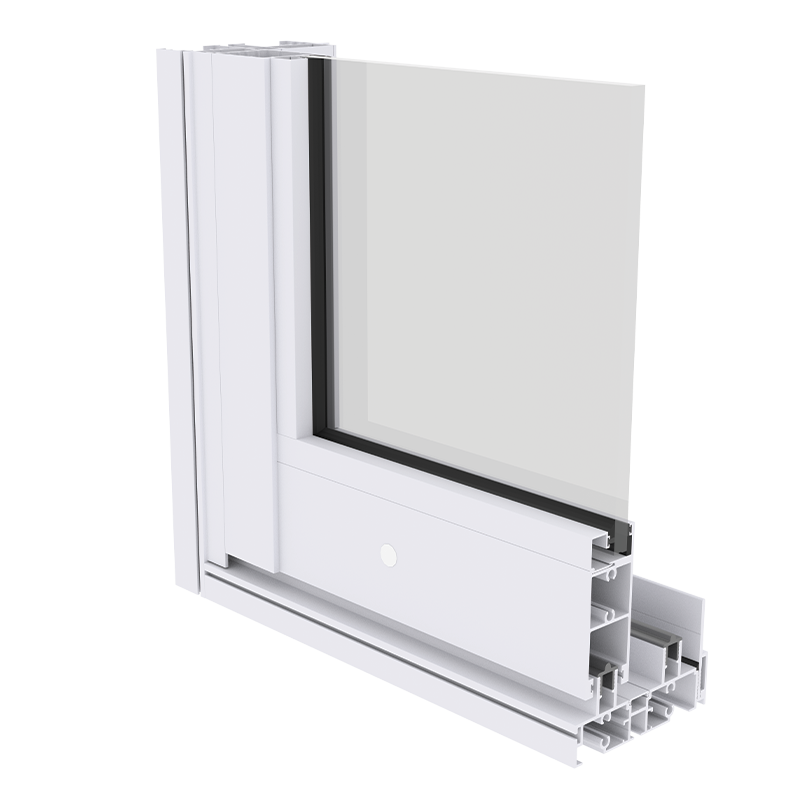

5.1/8 deep frame on 2 tracks
7. 5/8 deep frame on 3 tracks
10. 1/8 deep frame on 4 tracks
12. 5/8 deep frame on 5 tracks
Stainless steel fasteners
Heavy Duty extruded screen frame
2-point lock
Concealed installation screws
Optional Items:
Exterior Keyed security lock
Dual Track extruded screen frame
3, 4, 5 tracks configurations
Freestanding Jamb
Corner Door 90*
Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80
