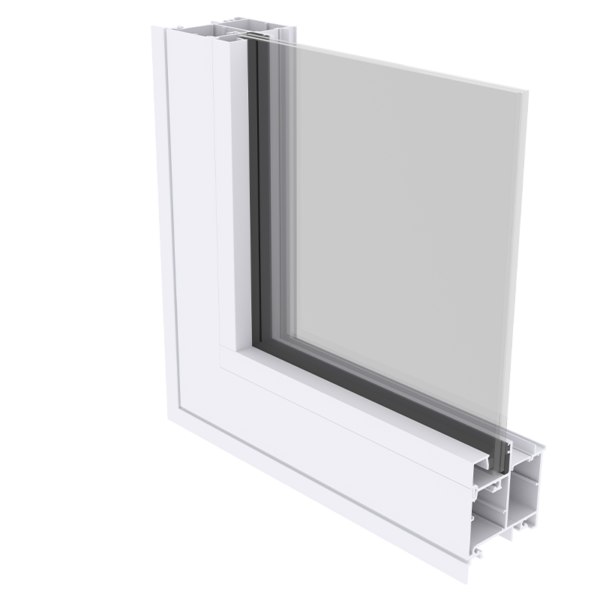

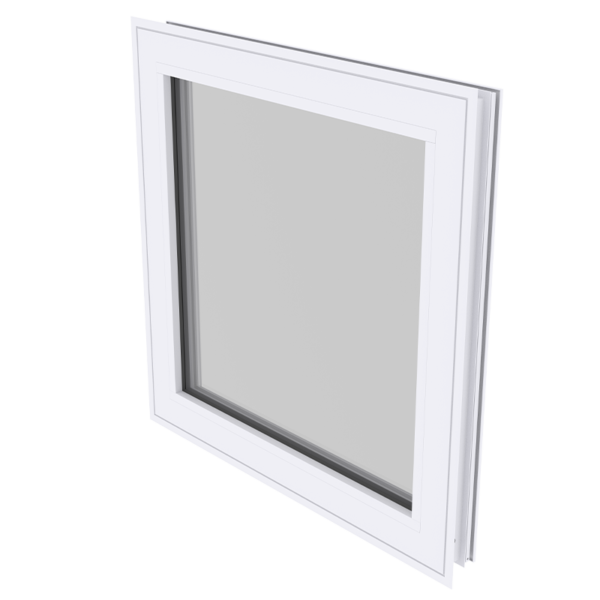

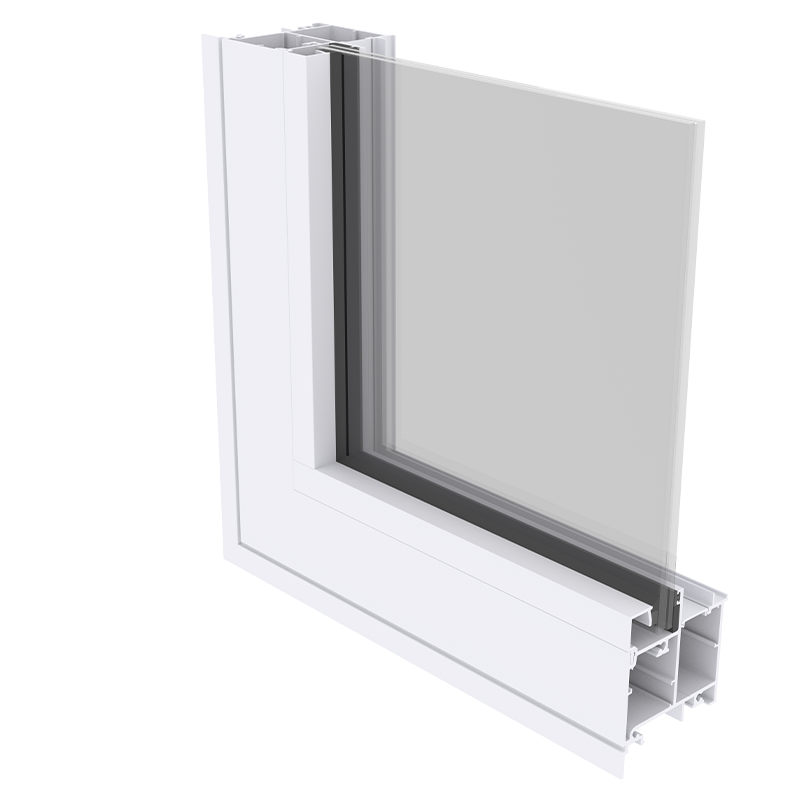

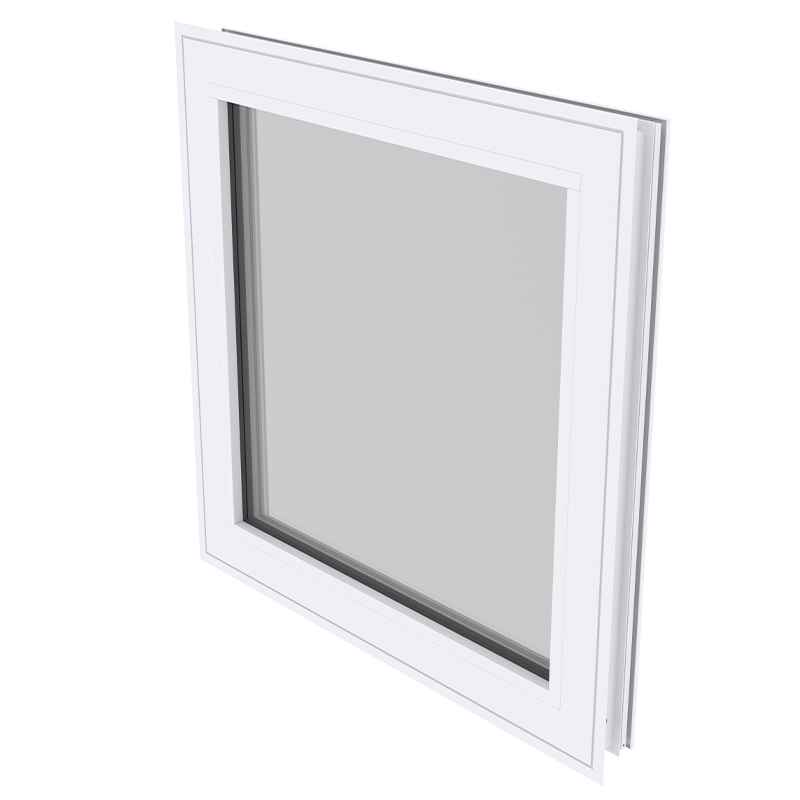

Fixed Casement S-8000

Outswing Fixed Casement S-8000
Configuration as viewed from outside looking in
All windows dimensions are tip to tip 1/2” flange frame
All window dimensions are to be taken from the outside (exterior)

Available Finishes:
White, Bronze, and Clear Anodized

Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer

Glass Types:
7/16” Laminated
9/16” Laminated
11/16” Insulated Laminated

Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70

Standard Hardware:
Single Stainless Steel arm roto operator and crank handle
Stainless steel operator track
Pair of stainless steel four bar concealed hinges
Multipoint Lock
Snubber blocks
Up to 5-point locking system (depends on height of window

Standard Features:
Extruded screen frame
Strong structural glazing
Extruded square glazing bead
Stainless steel assembly screws and corner keys
Double weatherstripping
½” Exterior flange frame
2 3/4″ deep frame

Optional Items:
Equal Legs Frame
Colonial muntin

Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80
