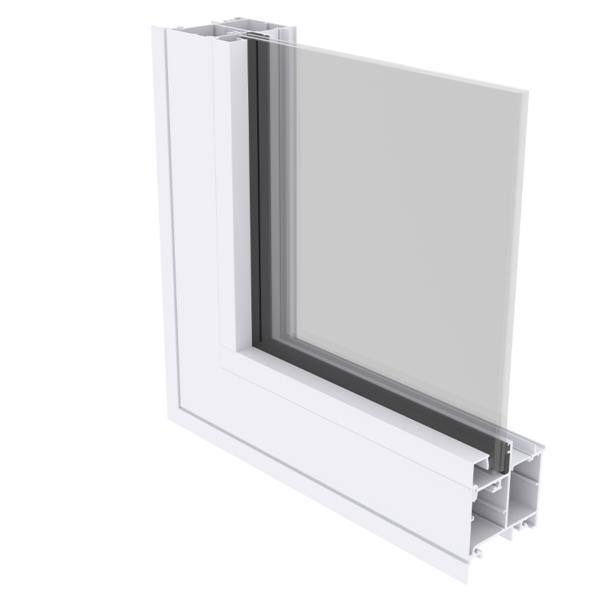

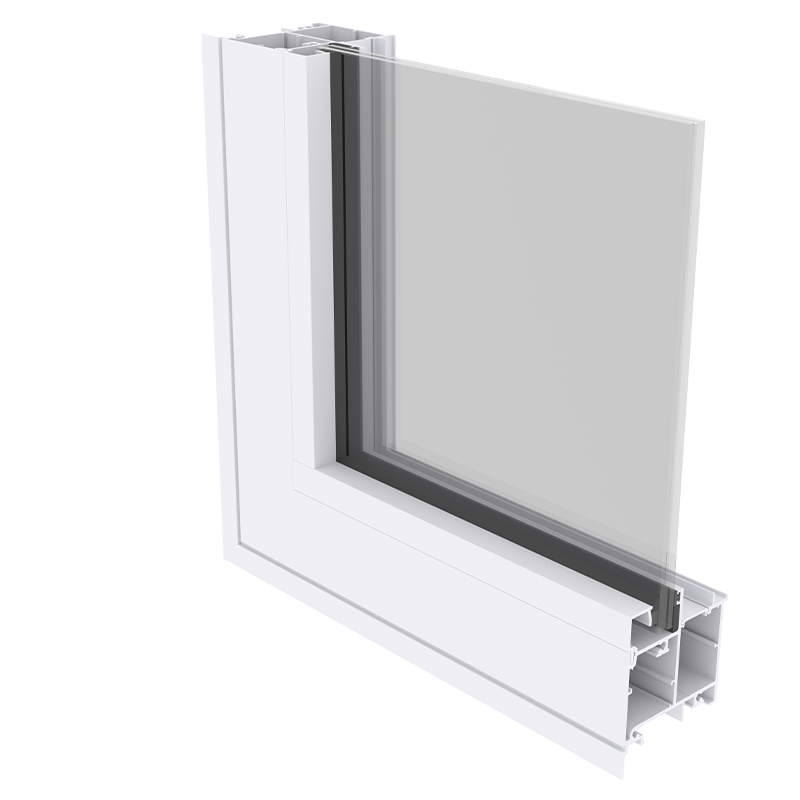

Fixed Window S-21000

Outswing Fixed Window S-21000

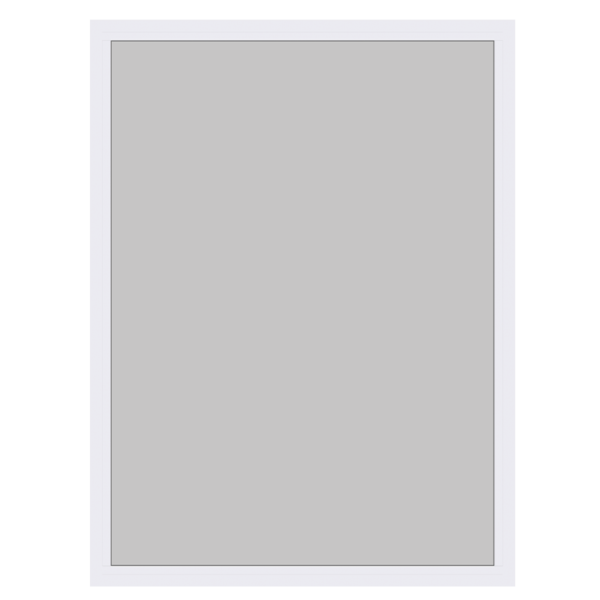

Configuration as viewed from outside looking in
All windows dimensions are tip to tip 1/2” flange frame
All window dimensions are to be taken from the outside (exterior)

Available Finishes:
White, Bronze, and Clear Anodized

Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer

Glass Types:
7/16” Laminated
9/16” Laminated
11/16” Insulated Laminated

Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70

Standard Hardware:
Egress self closing lock (Sill mounted)

Standard Features:
Stainless steel assembly screw
Extruded square glazing bead
2 3/4” deep Frame
Strong structural glazing
Fastener covers

Designer Fixed Windows:
Half Circle
Arch top/eyebrow
Full Circle
Octagon
Hexagon
Ellipse
Oval
Trapezoid
Pentagon
Gothic Pentagon

Optional Items:
Equal Legs Frame
Colonial muntin

Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80
