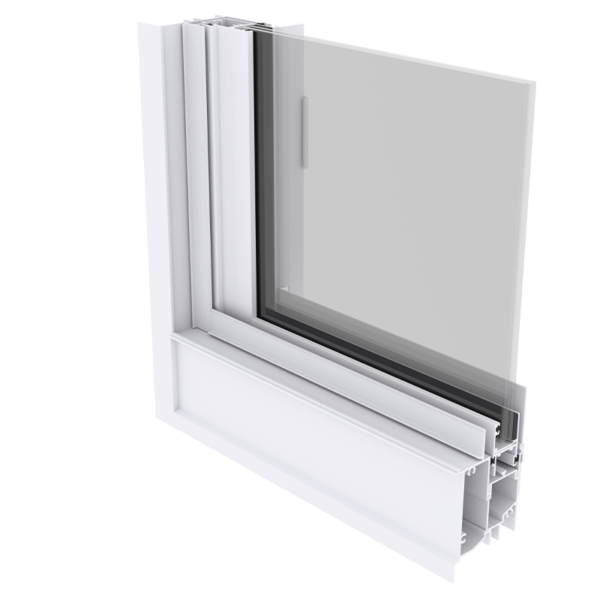

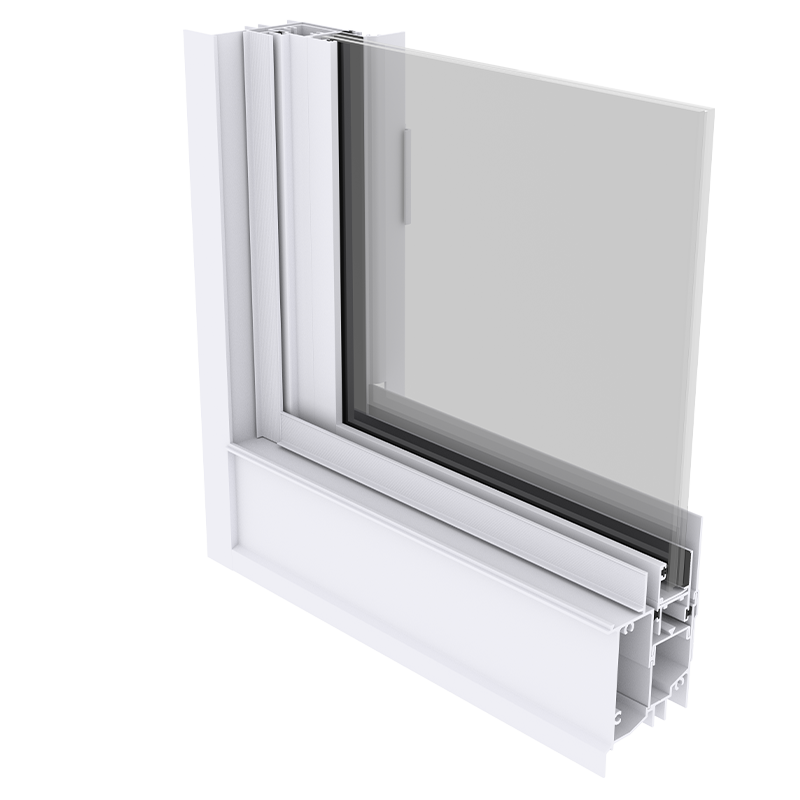

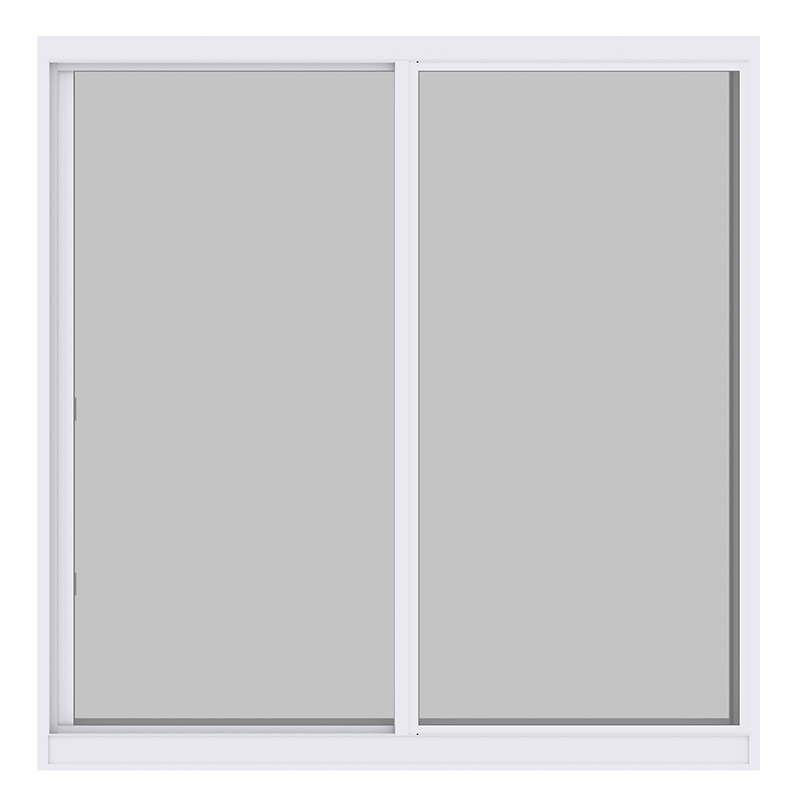

Horizontal Roller S-18000

Outswing Horizontal Roller S-18000
Configuration as viewed from outside looking in
All windows dimensions are tip to tip 1/2” flange frame
All window dimensions are to be taken from the outside (exterior)

Available Finishes:
White, Bronze, and Clear Anodized

Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer

Glass Types:
7/16” Laminated
9/16” Laminated
11/16” Insulated Laminated

Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70

Standard Hardware:
Egress self closing lock (Jamb)
Standard Features:
Two & Three Panel configurations available (OX, XO, XOX)
Equal lites or 1/4, 1/2, 1/4 configurations
Stainless Steel screw assembly
Double weatherstripping and weeped sill
2 3/8” deep frame
Extruded square glazing bead
Strong structural glazing
Extruded screen frame

Optional Items:
Equal Legs Frame
Colonial muntin

Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80
