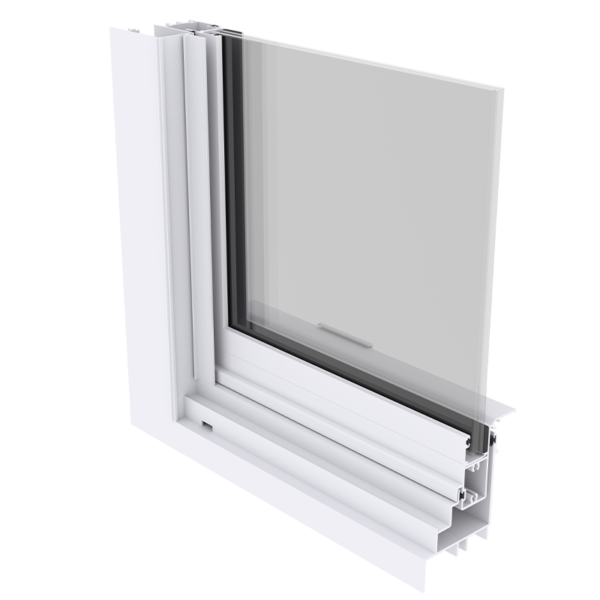

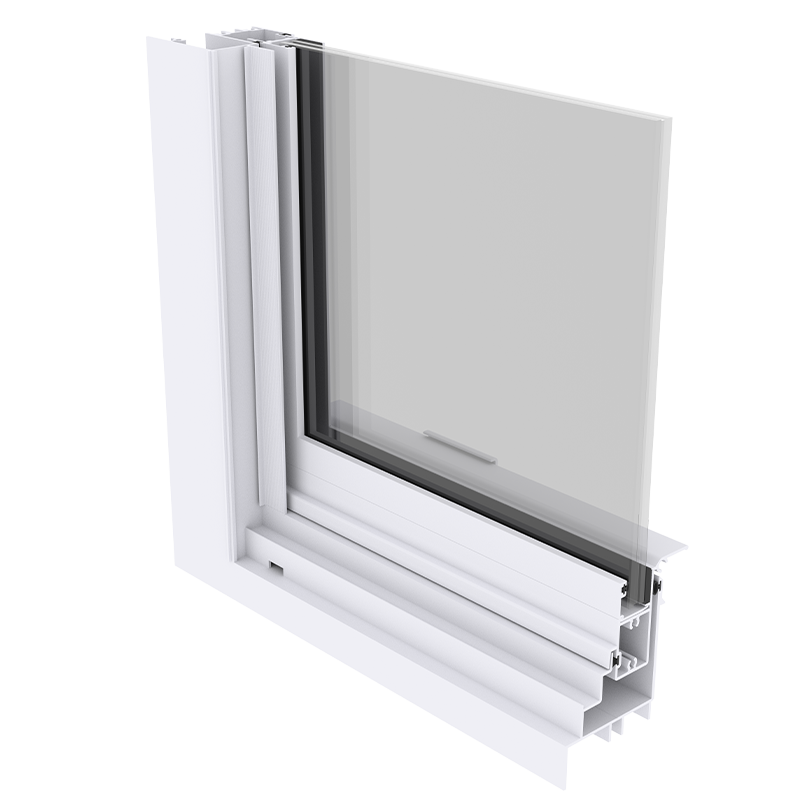

Single Hung S-2000

Outswing Single Hung S-2000

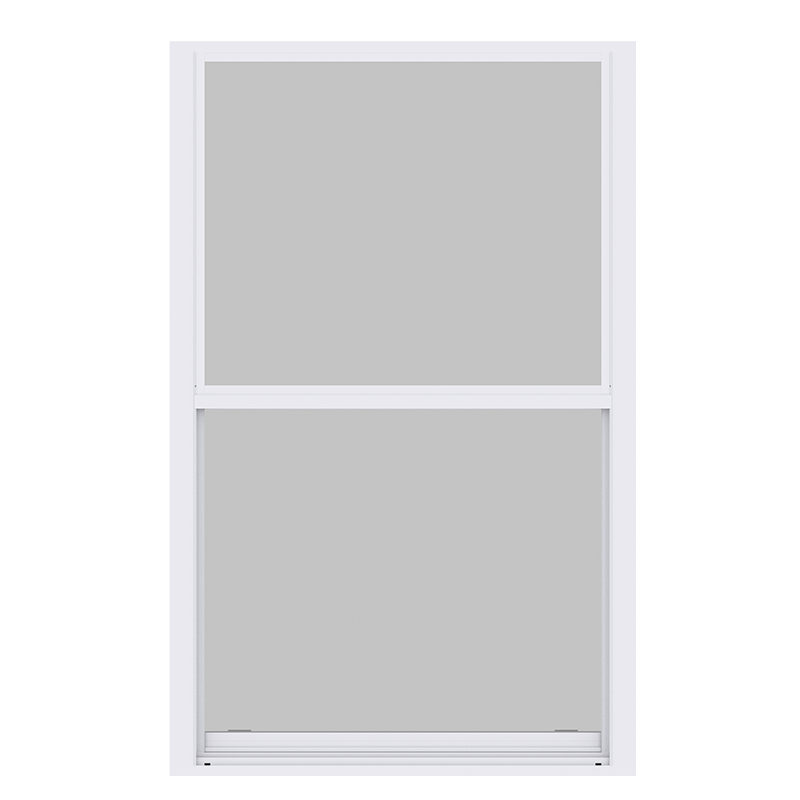

Configuration as viewed from outside looking in
All windows dimensions are tip to tip 1/2” flange frame
All window dimensions are to be taken from the outside (exterior)

Available Finishes:
White, Bronze, and Clear Anodized

Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer

Glass Types:
7/16” Laminated
9/16” Laminated
11/16” Insulated Laminated

Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70

Standard Hardware:
Egress self closing lock (Sill mounted)

Standard Features:
Matching vertical sightlines
2 3/8″ deep Frame
Hidden block and tackle balance
Extruded square glazing bead
Strong structural glazing
Extruded screen frame

Optional Items:
Equal Legs Frame
Uneven size vent windows (Oriel)
Colonial muntin

Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80
