Storefront S-12000

Outswing Storefront S-12000
The system integrates with Entrance Door with medium stile 4″ with a variety of locking hardware 2- and 3-point lock including panic device concealed vertical rod exit device. 1/2” threshold bumper, 1/4” threshold saddle, and height sill 1. 1/2” for water resistance (8 P.S.F)

Available Finishes:
White, Bronze, and Clear Anodized

Standard Glass Colors:
Clear, Gray, Bronze, Solexia Green, White Interlayer

Glass Types:
7/16” Laminated
9/16” Laminated
15/16” Insulated Laminated

Glass Coatings:
Energy efficient low-E options
SB-60 & SB-70

Standard Hardware:
#14 X 2 3/4” with 180 KSI tensile strength, coated with Xyaln 5000 series Floura Polymer coating

Standard Features:
6″ deep frame
Fastener Cover
Double weatherstripping
Strong Structural Glazing

Optional Items:
Colonial muntin

Aluminum Specification:
Tempered 6063-T6
Overall Thickness 0.80

Water resistant at 19.5 P.S. F. (ASTM E 547/E 331 Air Infiltration at 6.24 P.S.F. (ASTM E 283) Commercial rated Forced entry test (ASTM F588) Drop load test 400 ft. lbs. ANSIZ97.1

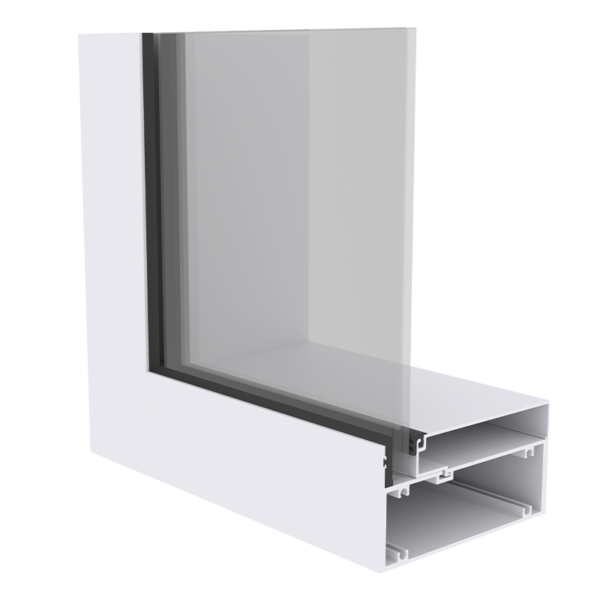

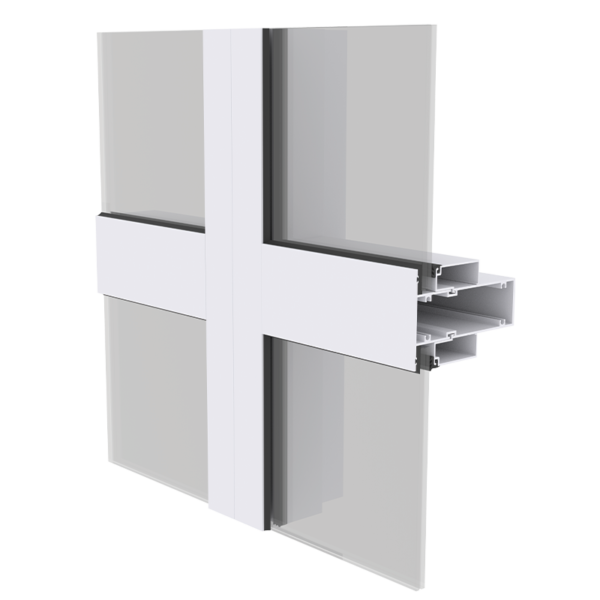

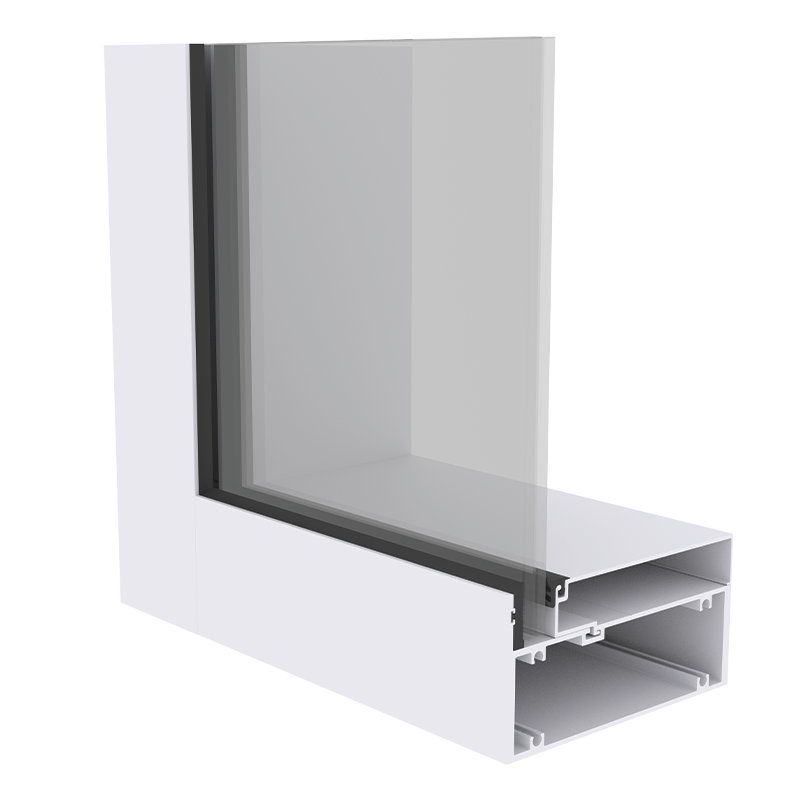

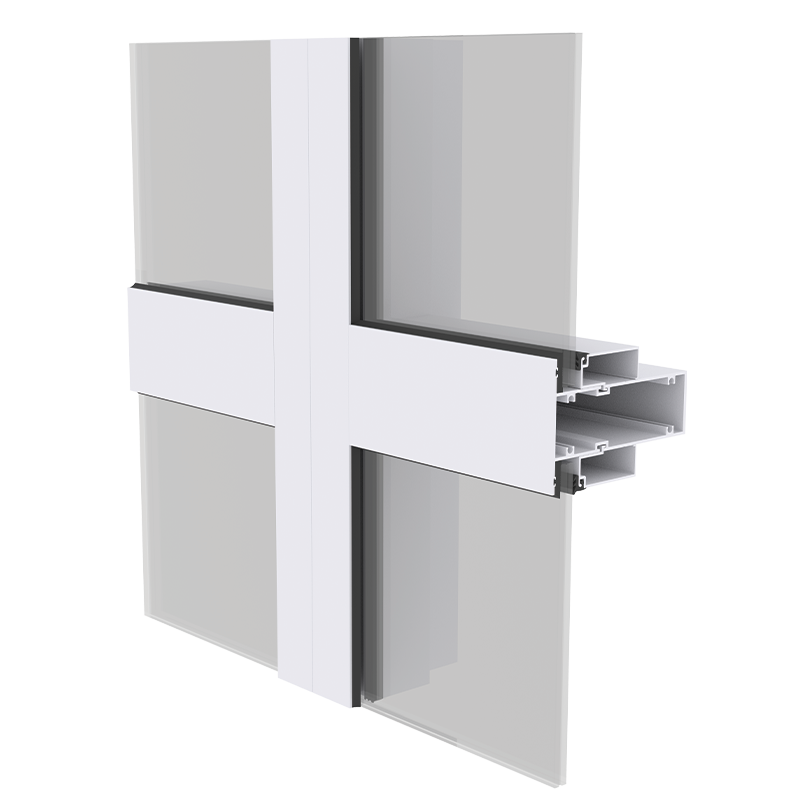

Jamb, Head, and Sill 3¨ X 6 ¨ Vertical and Horizontal Mullion 4¨ X 6¨ Small Fasteners Covers Large Fasteners Covers 4 Assembly screws per corner joint 1/4” X 2. 3/4”
